Visualization - Dynamic Agents#

The Boltzmann Wealth Model#

If you want to get straight to the tutorial checkout these environment providers:
Binder (This can take 30 seconds to 5 minutes to load)

Due to conflict with Colab and Solara there are no colab links for this tutorial

If you are running locally, please ensure you have the latest Mesa version installed.

Tutorial Description#

This tutorial extends the Boltzmann wealth model from the Visualization Basic Dashboard tutorial, by adding an interactive dashboard.

In this portion, we will demonstrate how users can employ create dynamic agent representation with their Mesa dashboards. This is part two of three visualization tutorials.

If you are starting here please see the Running Your First Model tutorial for dependency and start-up instructions

Import Dependencies#

This includes importing of dependencies needed for the tutorial.

# Has multi-dimensional arrays and matrices.
# Has a large collection of mathematical functions to operate on these arrays.
import numpy as np

# Data manipulation and analysis.
import pandas as pd

# Data visualization tools.
import seaborn as sns

import mesa
from mesa.discrete_space import CellAgent, OrthogonalMooreGrid
from mesa.visualization import SolaraViz, SpaceRenderer, make_plot_component
from mesa.visualization.components import AgentPortrayalStyle

/home/docs/checkouts/readthedocs.org/user_builds/mesa/envs/2873/lib/python3.13/site-packages/solara/validate_hooks.py:122: UserWarning: /home/docs/checkouts/readthedocs.org/user_builds/mesa/envs/2873/lib/python3.13/site-packages/mesa/visualization/solara_viz.py:399: ComponentsView: `use_state` found despite early return on line 376
To suppress this check, replace the line with:
    current_tab_index, set_current_tab_index = solara.use_state(0)  # noqa: SH101

Make sure you understand the consequences of this, by reading about the rules of hooks at:
    https://solara.dev/documentation/advanced/understanding/rules-of-hooks

  warnings.warn(str(e))

Basic Model#

The following is the basic model we will be using to build the dashboard. This is the same model seen in tutorials 0-3.

def compute_gini(model):
    agent_wealths = [agent.wealth for agent in model.agents]
    x = sorted(agent_wealths)
    N = model.num_agents
    B = sum(xi * (N - i) for i, xi in enumerate(x)) / (N * sum(x))
    return 1 + (1 / N) - 2 * B


class MoneyAgent(CellAgent):
    """An agent with fixed initial wealth."""

    def __init__(self, model, cell):
        """initialize a MoneyAgent instance.

        Args:
            model: A model instance
        """
        super().__init__(model)
        self.cell = cell
        self.wealth = 1

    def move(self):
        """Move the agent to a random neighboring cell."""
        self.cell = self.cell.neighborhood.select_random_cell()

    def give_money(self):
        """Give 1 unit of wealth to a random agent in the same cell."""
        cellmates = [a for a in self.cell.agents if a is not self]

        if cellmates:  # Only give money if there are other agents present
            other = self.random.choice(cellmates)
            other.wealth += 1
            self.wealth -= 1

    def step(self):
        """do one step of the agent."""
        self.move()
        if self.wealth > 0:
            self.give_money()


class MoneyModel(mesa.Model):
    """A model with some number of agents."""

    def __init__(self, n=10, width=10, height=10, seed=None):
        """Initialize a MoneyModel instance.

        Args:
            N: The number of agents.
            width: width of the grid.
            height: Height of the grid.
        """
        super().__init__(seed=seed)
        self.num_agents = n
        self.grid = OrthogonalMooreGrid((width, height), random=self.random)

        # Create agents
        MoneyAgent.create_agents(
            self,
            self.num_agents,
            self.random.choices(self.grid.all_cells.cells, k=self.num_agents),
        )

        self.datacollector = mesa.DataCollector(
            model_reporters={"Gini": compute_gini}, agent_reporters={"Wealth": "wealth"}
        )
        self.datacollector.collect(self)

    def step(self):
        """do one step of the model"""
        self.agents.shuffle_do("step")
        self.datacollector.collect(self)

# Lets make sure the model works
model = MoneyModel(100, 10, 10)
for _ in range(20):
    model.step()


data = model.datacollector.get_agent_vars_dataframe()

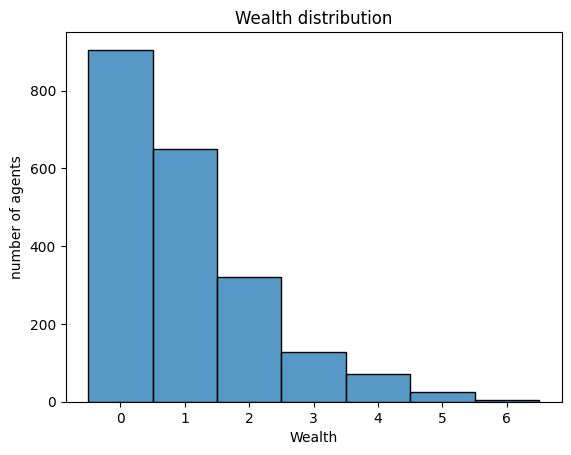

# Use seaborn
g = sns.histplot(data["Wealth"], discrete=True)
g.set(title="Wealth distribution", xlabel="Wealth", ylabel="number of agents");
../_images/929cdbabee31e293c191e7dad8cb35751aeb5ae6c11be0c39437a93b203267bf.png

Adding visualization#

So far, we’ve built a model, run it, and analyzed some output afterwards. However, one of the advantages of agent-based models is that we can often watch them run step by step, potentially spotting unexpected patterns, behaviors or bugs, or developing new intuitions, hypotheses, or insights. Other times, watching a model run can explain it to an unfamiliar audience better than static explanations. Like many ABM frameworks, Mesa allows you to create an interactive visualization of the model. In this section we’ll walk through creating a visualization using built-in components, and (for advanced users) how to create a new visualization element.

First, a quick explanation of how Mesa’s interactive visualization works. The visualization is done in a browser window or Jupyter instance, using the Solara framework, a pure Python, React-style web framework. Running solara run app.py will launch a web server, which runs the model, and displays model detail at each step via a plotting library. Alternatively, you can execute everything inside a Jupyter instance and display it inline.

Dynamic Agent Representation#

In the first visualization, all we could see is the agents moving around – but not how much money they had, or anything else of interest. In this tutorial let’s change it so that agents are represented by the units of wealth they have. So those who are broke (wealth 0) are drawn in red, smaller.

Since Mesa is open source, if you have ideas to improve the visualization stack, feel free to contribute.

When using the default drawer, an agent’s shape can be customized in addition to its size and color.

  • For matplotlib, allowed shape values can be found here.

  • For altair, supported shapes include: "circle", "square", "cross", "diamond", "triangle-up", "triangle-down", "triangle-right", and "triangle-left".

Note: Always check which backend is being used before assigning shapes. If a shape name doesn’t match what’s supported by the selected backend, it may cause errors.

In some cases, Mesa implicitly converts common shape names between Altair and Matplotlib (e.g., from Altair to Matplotlib), but this mapping is limited—and there’s no support for conversion in the reverse direction (Matplotlib to Altair).

To do this, we go back to our agent_portrayal code and add some code to change the portrayal based on the agent properties and launch the server again.

def agent_portrayal(agent):
    portrayal = AgentPortrayalStyle(size=50, color="tab:orange")
    if agent.wealth > 0:
        portrayal.update(("color", "tab:blue"), ("size", 100))
    return portrayal

As like last time we then instantiate the model parameters, some of which are modifiable by user inputs. In this case, the number of agents, N, is specified as a slider of integers.

model_params = {
    "n": {
        "type": "SliderInt",
        "value": 50,
        "label": "Number of agents:",
        "min": 10,
        "max": 100,
        "step": 1,
    },
    "width": 10,
    "height": 10,
}

Then just like last time we instantiate the visualization object which (by default) displays the grid containing the agents, and timeseries of values computed by the model’s data collector. In this example, we specify the Gini coefficient.

There are 3 main buttons (we will discuss the play interval, render interval and use threads in lesson 6):

  • the step button, which advances the model by 1 step

  • the play button, which advances the model indefinitely until it is paused

  • the pause button, which pauses the model

To reset the model, the order of operations are important

  1. Stop the model

  2. Update the parameters (e.g. move the sliders)

  3. Press reset

Page Tab View#

Plot Components#

You can place different components (except the renderer) on separate pages according to your preference. There are no restrictions on page numbering — pages do not need to be sequential or positive. Each page acts as an independent window where components may or may not exist.

The default page is page=0. If pages are not sequential (e.g., page=1 and page=10), the system will automatically create the 8 empty pages in between to maintain consistent indexing. To avoid empty pages in your dashboard, use sequential page numbers.

To assign a plot component to a specific page, pass the page keyword argument to make_plot_component. For example, the following will display the plot component on page 1:

plot_comp = make_plot_component("encoding", page=1)

Custom Components#

In tutorial 8, you will learn how to create custom components for the Solara dashboard. If you want a custom component to appear on a specific page, you must pass it as a tuple containing the component and the page number.

@solara.component
def CustomComponent():
    ...

page = SolaraViz(
    model,
    renderer,
    components=[(CustomComponent, 1)]  # Custom component will appear on page 1
)

⚠️ Warning Running the model can be performance-intensive. It is strongly recommended to pause the model in the dashboard before switching pages.

# Create initial model instance
money_model = MoneyModel(n=50, width=10, height=10)
renderer = SpaceRenderer(model=money_model, backend="matplotlib").render(
    agent_portrayal=agent_portrayal
)

GiniPlot = make_plot_component("Gini")

page = SolaraViz(
    money_model,
    renderer,
    components=[GiniPlot],
    model_params=model_params,
    name="Boltzmann Wealth Model",
)
# This is required to render the visualization in the Jupyter notebook
page
../_images/0b587908cf2b34d46e21767c7df72418ee04b17b74bef1c8d8be1750df879032.png

Exercise#

  • Change the agent representations, such as squares, triangles or even .pngs

Next Steps#

Check out the next tutorial visualization rendering with SpaceRenderer on how to further enhance your interactive dashboard.

[Comer2014] Comer, Kenneth W. “Who Goes First? An Examination of the Impact of Activation on Outcome Behavior in AgentBased Models.” George Mason University, 2014. http://mars.gmu.edu/bitstream/handle/1920/9070/Comer_gmu_0883E_10539.pdf

[Dragulescu2002] Drăgulescu, Adrian A., and Victor M. Yakovenko. “Statistical Mechanics of Money, Income, and Wealth: A Short Survey.” arXiv Preprint Cond-mat/0211175, 2002. http://arxiv.org/abs/cond-mat/0211175.
