Visualization - Property Layer Visualization#

The Boltzmann Wealth Model#

If you want to get straight to the tutorial checkout these environment providers:
Binder (This can take 30 seconds to 5 minutes to load)

Due to conflict with Colab and Solara there are no colab links for this tutorial

If you are running locally, please ensure you have the latest Mesa version installed.

Tutorial Description#

This tutorial builds upon the Visualization Rendering with SpaceRenderer tutorial. We will explore more advanced features of the SpaceRenderer to create property layers and their visualization.

NOTE: This is not a tutorial on property layers themselves, but rather on their visualization. To explore the functionalities of property layers, please refer to this tutorial.

If you are starting here please see the Running Your First Model tutorial for dependency and start-up instructions

Import Dependencies#

This includes importing of dependencies needed for the tutorial.

# Has multi-dimensional arrays and matrices.
# Has a large collection of mathematical functions to operate on these arrays.
import numpy as np

# Data manipulation and analysis.
import pandas as pd

# Data visualization tools.
import seaborn as sns

import mesa
from mesa.discrete_space import CellAgent, OrthogonalMooreGrid
from mesa.discrete_space.property_layer import PropertyLayer
from mesa.visualization import SolaraViz, SpaceRenderer, make_plot_component
from mesa.visualization.components import AgentPortrayalStyle, PropertyLayerStyle

/home/docs/checkouts/readthedocs.org/user_builds/mesa/envs/2873/lib/python3.13/site-packages/solara/validate_hooks.py:122: UserWarning: /home/docs/checkouts/readthedocs.org/user_builds/mesa/envs/2873/lib/python3.13/site-packages/mesa/visualization/solara_viz.py:399: ComponentsView: `use_state` found despite early return on line 376
To suppress this check, replace the line with:
    current_tab_index, set_current_tab_index = solara.use_state(0)  # noqa: SH101

Make sure you understand the consequences of this, by reading about the rules of hooks at:
    https://solara.dev/documentation/advanced/understanding/rules-of-hooks

  warnings.warn(str(e))

Basic Model#

The following is the base model we’ll use to build the dashboard. It’s an extension of the model introduced in Tutorials 0–3, with an added property layer called Test Layer to demonstrate property layer visualization functionalities.

def compute_gini(model):
    agent_wealths = [agent.wealth for agent in model.agents]
    x = sorted(agent_wealths)
    N = model.num_agents
    B = sum(xi * (N - i) for i, xi in enumerate(x)) / (N * sum(x))
    return 1 + (1 / N) - 2 * B


class MoneyAgent(CellAgent):
    """An agent with fixed initial wealth."""

    def __init__(self, model, cell):
        """initialize a MoneyAgent instance.

        Args:
            model: A model instance
        """
        super().__init__(model)
        self.cell = cell
        self.wealth = 1

    def move(self):
        """Move the agent to a random neighboring cell."""
        self.cell = self.cell.neighborhood.select_random_cell()

    def give_money(self):
        """Give 1 unit of wealth to a random agent in the same cell."""
        cellmates = [a for a in self.cell.agents if a is not self]

        if cellmates:  # Only give money if there are other agents present
            other = self.random.choice(cellmates)
            other.wealth += 1
            self.wealth -= 1

    def step(self):
        """do one step of the agent."""
        self.move()
        if self.wealth > 0:
            self.give_money()


class MoneyModel(mesa.Model):
    """A model with some number of agents."""

    def __init__(self, n=10, width=10, height=10, seed=None):
        """Initialize a MoneyModel instance.

        Args:
            N: The number of agents.
            width: Width of the grid.
            height: Height of the grid.
        """
        super().__init__(seed=seed)
        self.num_agents = n
        self.grid = OrthogonalMooreGrid((width, height), random=self.random)

        # Add a test property layer with random data
        test_layer = PropertyLayer(
            "test layer", (width, height), default_value=0, dtype=int
        )
        test_layer.data = np.random.randint(0, 10, size=(width, height))
        self.grid.add_property_layer(test_layer)

        # Create agents
        MoneyAgent.create_agents(
            self,
            self.num_agents,
            self.random.choices(self.grid.all_cells.cells, k=self.num_agents),
        )

        self.datacollector = mesa.DataCollector(
            model_reporters={"Gini": compute_gini}, agent_reporters={"Wealth": "wealth"}
        )
        self.datacollector.collect(self)

    def step(self):
        """do one step of the model"""
        self.agents.shuffle_do("step")
        self.datacollector.collect(self)

# Let's make sure the model works
model = MoneyModel(100, 10, 10)
for _ in range(20):
    model.step()


data = model.datacollector.get_agent_vars_dataframe()

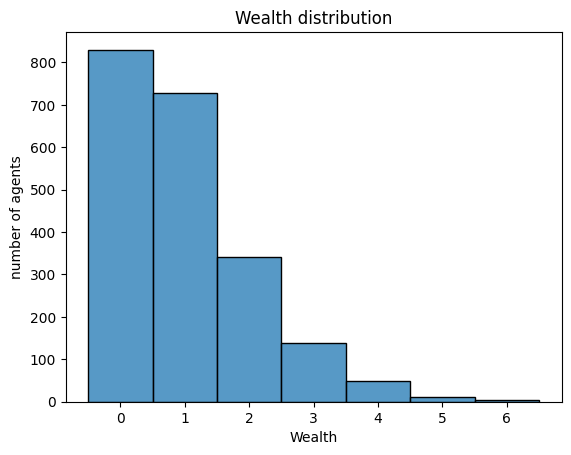

# Use seaborn
g = sns.histplot(data["Wealth"], discrete=True)
g.set(title="Wealth distribution", xlabel="Wealth", ylabel="number of agents");
../_images/2117beda72555aeb98a48deac0d3fe6a0a3aad8fb34a103e2fb2f0ec17c23538.png

Adding visualization#

So far, we’ve built a model, run it, and analyzed some output afterwards. However, one of the advantages of agent-based models is that we can often watch them run step by step, potentially spotting unexpected patterns, behaviors or bugs, or developing new intuitions, hypotheses, or insights. Other times, watching a model run can explain it to an unfamiliar audience better than static explanations. Like many ABM frameworks, Mesa allows you to create an interactive visualization of the model. In this section we’ll walk through creating a visualization using built-in components, and (for advanced users) how to create a new visualization element.

First, a quick explanation of how Mesa’s interactive visualization works. The visualization is done in a browser window or Jupyter instance, using the Solara framework, a pure Python, React-style web framework. Running solara run app.py will launch a web server, which runs the model, and displays model detail at each step via a plotting library. Alternatively, you can execute everything inside a Jupyter instance and display it inline.

As in the previous tutorial we instantiate the model parameters, some of which are modifiable by user inputs. In this case, the number of agents, N, is specified as a slider of integers.

model_params = {
    "n": {
        "type": "SliderInt",
        "value": 50,
        "label": "Number of agents:",
        "min": 10,
        "max": 100,
        "step": 1,
    },
    "width": 10,
    "height": 10,
}

Then just like last time we instantiate the visualization object which (by default) displays the grid containing the agents, and timeseries of values computed by the model’s data collector. In this example, we specify the Gini coefficient.

There are 3 buttons:

  • the step button, which advances the model by 1 step

  • the play button, which advances the model indefinitely until it is paused

  • the pause button, which pauses the model

To reset the model, the order of operations are important

  1. Stop the model

  2. Update the parameters (e.g. move the sliders)

  3. Press reset

Additional Interactive Controls

In addition to the basic controls (Play, Pause, Step), there are three extra interactive UI elements that give you more control over the simulation and visualization performance:

  1. Play Interval Slider This slider controls the time delay (in milliseconds) between each step of the simulation when it is playing.

    • Lower values = faster simulation updates

    • Higher values = slower, more observable step-by-step updates

  2. Render Interval Slider This slider determines how frequently the visualization updates, based on the number of steps.

    • For example, if set to 5, the visualization will update only after every 5 steps of the model.

    • ⚠️ Note: This interval is step-based, not time-based.

  3. Use Threads Checkbox This checkbox enables threaded execution of the model.

    • When enabled, the visualization runs on a separate thread, allowing the UI to remain responsive even during heavy computations.

    • It also ensures the visualization only updates at fixed intervals, improving performance and responsiveness during rapid simulations.

Page Tab View#

Plot Components#

You can place different components (except the renderer) on separate pages according to your preference. There are no restrictions on page numbering — pages do not need to be sequential or positive. Each page acts as an independent window where components may or may not exist.

The default page is page=0. If pages are not sequential (e.g., page=1 and page=10), the system will automatically create the 8 empty pages in between to maintain consistent indexing. To avoid empty pages in your dashboard, use sequential page numbers.

To assign a plot component to a specific page, pass the page keyword argument to make_plot_component. For example, the following will display the plot component on page 1:

plot_comp = make_plot_component("encoding", page=1)

Custom Components#

In the next tutorial, you will learn how to create custom components for the Solara dashboard. If you want a custom component to appear on a specific page, you must pass it as a tuple containing the component and the page number.

@solara.component
def CustomComponent():
    ...

page = SolaraViz(
    model,
    renderer,
    components=[(CustomComponent, 1)]  # Custom component will appear on page 1
)

⚠️ Warning Running the model can be performance-intensive. It is strongly recommended to pause the model in the dashboard before switching pages.

Visualizing Property Layers#

⚠️ Important: Property layer visualization on HexGrid is not supported with the altair backend; use matplotlib instead.

You can visualize property layers in a way that’s very similar to how agents are visualized—by defining a custom portrayal function. Let’s call this function propertylayer_portrayal.

Mesa provides a dedicated component for property layer styling, called PropertyLayerStyle (similar to AgentPortrayalStyle for agents). You can import it from mesa.visualization.components as shown earlier.

In PropertyLayerStyle, you can define:

  • color or colormap: Determines how the values in the layer are visualized

  • alpha: Controls the transparency (opacity) of the layer

  • colorbar: A boolean that determines whether a colorbar is shown alongside the visualization

  • vmin and vmax: The minimum and maximum data values to be visualized, controlling the color scale range, these default to the minimum and maximum values in your data respectively if not defined.

The portrayal function receives a layer object as an argument, just like how agent_portrayal receives an agent. If your model includes multiple property layers, you can conditionally adjust the visualization logic based on the layer.name field. This allows you to apply different styles to each layer as needed.

Here’s a quick example:

def propertylayer_portrayal(layer):
    if layer.name == "WealthDensity":
        return PropertyLayerStyle(
            colormap="viridis",
            alpha=0.6,
            colorbar=True,
            vmin=0,
            vmax=10,
        )
    elif layer.name == "Temperature":
        return PropertyLayerStyle(
            colormap="coolwarm",
            alpha=0.5,
            colorbar=False,
            vmin=-1,
            vmax=1,
        )

This approach allows you to customize each property layer’s appearance independently while keeping your visualization code clean and modular.

We’ll reuse the previously defined agent_portrayal function and introduce a new propertylayer_portrayal function specifically for visualizing the property layer.

def agent_portrayal(agent):
    portrayal = AgentPortrayalStyle(size=50, color="orange")
    if agent.wealth > 0:
        portrayal.update(("color", "blue"), ("size", 100))
    return portrayal


def propertylayer_portrayal(layer):
    if layer.name == "test layer":
        return PropertyLayerStyle(color="blue", alpha=0.8, colorbar=True)


# Create initial model instance
money_model = MoneyModel(n=50, width=10, height=10)

Drawing the Property Layers#

We’ll now create a renderer and draw the grid structure, the agents and the test layer using the matplotlib backend.

%%capture

renderer = SpaceRenderer(model=money_model, backend="matplotlib")
renderer.draw_structure(lw=2, ls="solid", color="black", alpha=0.1)
renderer.draw_agents(agent_portrayal)
renderer.draw_propertylayer(propertylayer_portrayal)

You can also use render() function to draw property layers in one go.

%%capture

renderer = SpaceRenderer(model=money_model, backend="matplotlib")
renderer.render(
    space_kwargs={  # an alternative way to customize the grid structure
        "lw": 2,
        "ls": "solid",
        "color": "black",
        "alpha": 0.1,
    },
    agent_portrayal=agent_portrayal,
    propertylayer_portrayal=propertylayer_portrayal,
)

We’ll keep the post_process to make the grid look good.

def post_process(ax):
    """Customize the matplotlib axes after rendering."""
    ax.set_title("Boltzmann Wealth Model")
    ax.set_xlabel("x")
    ax.set_ylabel("y")
    ax.grid(True, which="both", linestyle="--", linewidth=0.5, alpha=0.5)
    ax.set_aspect("equal", adjustable="box")


renderer.post_process = post_process


def post_process_lines(ax):
    """Customize the matplotlib axes for the Gini line plot."""
    ax.set_title("Gini Coefficient Over Time")
    ax.set_xlabel("Time Step")
    ax.set_ylabel("Gini Coefficient")
    ax.grid(True, which="both", linestyle="--", linewidth=0.5, alpha=0.5)
    ax.set_aspect("auto")


GiniPlot = make_plot_component("Gini", post_process=post_process_lines)

Launching the Visualization#

Now that we have the model, visual renderer, and plot components defined, we can bring everything together using SolaraViz:

page = SolaraViz(
    money_model,
    renderer,
    components=[GiniPlot],
    model_params=model_params,
    name="Boltzmann Wealth Model",
)

# This is required to render the visualization in a Jupyter notebook
page

<Figure size 640x480 with 0 Axes>

Exercise#

  • Try removing the post_process and changing the backend.

  • Try visualizing multiple property layers.

Next Steps#

Checkout this mesa example to further explore the capabilities of the property layers. Check out the next visualization tutorial custom components on how to further enhance your interactive dashboard.
